Quick Start

SASKTRAN2 extensions are designed to be used with the base sasktran2 package, with the MT_CKD continuum implemented as a constituent in sasktran2_ext.continuum.MTCKDContinuum. The constituent calls the MT_CKD fortran module, which requires pressure, temperature, H2O, CO2, and O3 as input parameters. Therefore, our model atmosphere must contain these constituents.

We use the base SASKTRAN2 package to set up our model for a nadir-viewing infrared calculation,

import numpy as np
import sasktran2 as sk

config = sk.Config()
config.emission_source = sk.EmissionSource.Standard
config.single_scatter_source = sk.SingleScatterSource.NoSource

altitude_grid = np.arange(0, 65001, 1000.0)

geometry = sk.Geometry1D(
    0.6,
    0,
    6327000,
    altitude_grid,
    sk.InterpolationMethod.LinearInterpolation,
    sk.GeometryType.Spherical,
)

viewing_geo = sk.ViewingGeometry()
viewing_geo.add_ray(sk.GroundViewingSolar(0.6, 0, 0.8, 200000))

wavenum = np.arange(530, 550, 0.01)

atmosphere = sk.Atmosphere(geometry, config, wavenumber_cminv=wavenum)
sk.climatology.us76.add_us76_standard_atmosphere(atmosphere)
for species in ["H2O", "O3", "CO2"]:
    hitran_db = sk.database.HITRANDatabase(
        molecule=species,
        start_wavenumber=530,
        end_wavenumber=550,
        wavenumber_resolution=0.01,
        reduction_factor=1,
        backend="sasktran2",
        profile="voigt"
    )
    atmosphere[species] = sk.climatology.mipas.constituent(species, hitran_db)
atmosphere["emission"] = sk.constituent.ThermalEmission()
atmosphere["surface_emission"] = sk.constituent.SurfaceThermalEmission(300, 0.9)

For comparison, calculate the radiance before adding the continuum,

engine = sk.Engine(config, geometry, viewing_geo)
output_no_continuum = engine.calculate_radiance(atmosphere)

Now add the continuum constituent from SASKTRAN2 extensions and redo the calculation,

from sasktran2_ext.continuum import MTCKDContinuum

atmosphere["continuum"] = MTCKDContinuum()

output_with_continuum = engine.calculate_radiance(atmosphere)

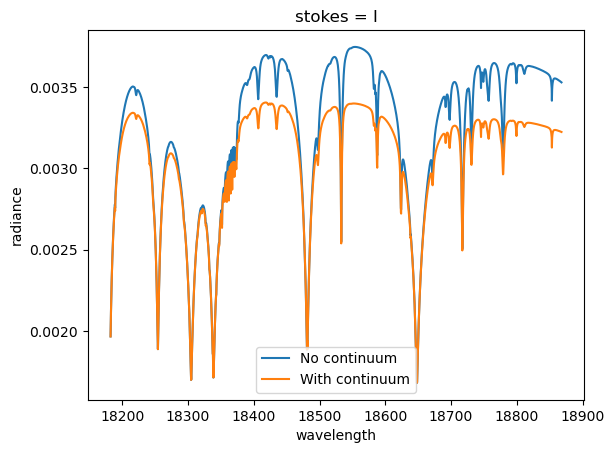

Plot the result,

import matplotlib.pyplot as plt
output_no_continuum["radiance"].isel(los=0, stokes=0).plot(label="No continuum")
output_with_continuum["radiance"].isel(los=0, stokes=0).plot(label="With continuum")
plt.legend()

<matplotlib.legend.Legend at 0x7a318d504ec0>
